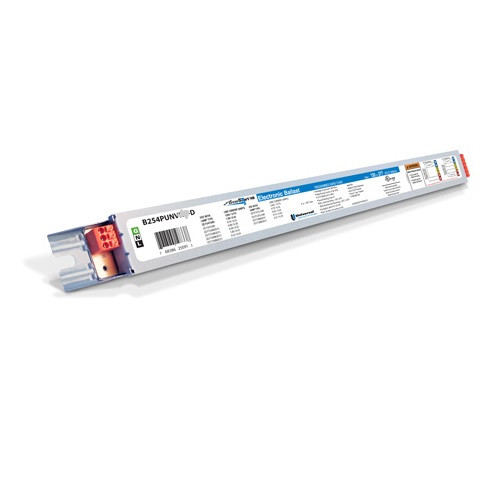

Universal B254PUNV-D Accustart5 Ballast

(1 review) Write a Review
In stock
Free Shipping

Product Overview


Universal Lighting 19830 Triad Accustart5  B254PUNVD 2-Lamp 54WT5HO 120/277 Vac 50-60HZ  Programmed Rapid Start Electronic Ballast Operates the Following Lamps:

  • (1-2) F54T5HO (F54T5HO/Alto,FP54HO/ECO,FQ 49W/T5,F54WT5/HO/ECO)
  • (1-2) F54T5ES 49W (F54T5/49W/Alto ,FP54/50W,FQ 49W,F49WT5/HO/ECO)
  • (1-2) FT55W/2G11(PL-L 55W/4P, FT55DL/ECO, Dulux L 55W/4P)
  • (1-2) FT50W/2G11(PL-L 50W/4P, FT50DL/ECO, GE F50BX/4P)
  • (1-2) FT36W/2G11(PL-L 36W/4P, FT36DL/ECO, Dulux L 36W/4P)
  • (1) FC12T5/HO 55W (TL5C 55W, FC 55W)


Additional Details

  • Programmed Rapid Start
  • Series Lamp Operation
  • Active Power Factor Correction
  • Auto Reset after Lamp Replacement
  • End of Lamp Life Shutdown Circuitry
  • Light-weight, Low Profile Housing
  • (Dim:16.88”L x 1.18”W x 1.00”H)
  • Line Voltage: 120 - 277 vac, ±10%, 50/60Hz
  • Manufactured in North America
  • Meets ANSI Standard C82.11-1993
  • Normal Ballast Factor < 10% THD
  • Sound Rating A (20-24 decibels)
  • UL Type 1 Outdoor



(1 review) Write a Review

1 Review Hide Reviews Show Reviews

  • 5
    Good design easy to use.

    Posted by Joe on 31st Jul 2016

    This electronic ballast was easy to install. Need to remove pop-rivets. Transfer individual wires one at a time. Requires small screw driver to press the button next to the wire being removed. This is similar to the option on the back side of a duplex outlet instead of placing the wire under the screw.
