Product Overview
Philips ROVR IDL-2S26-M5-BS Electronic Dimming Ballast — Programmed Start — 120-277V — Dims to 3% (1% for T5/HO) — CFQ/CFTR 13W-42W CFL Compatible

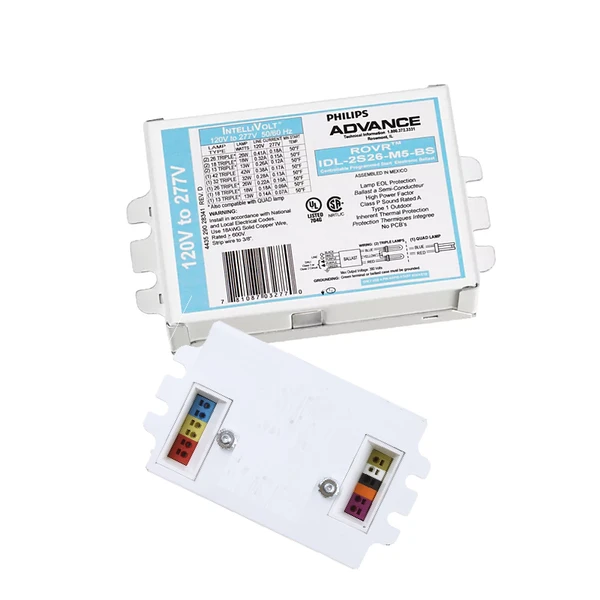

The ROVR IDL-2S26-M5-BS is a Philips Advance electronic dimming ballast with Programmed Start, wired in series for 1 or 2 compatible compact fluorescent (CFL) lamps. Available in dedicated 120V (IDL-2S26-M5-BS@120) and 277V (IDL-2S26-M5-BS@277) input versions, it dims CFQ and CFTR lamps from 100% down to 3% relative light output (1% for T5/HO lamps), with a Class A sound rating and a five-year manufacturer warranty.
|
BALLAST TYPE
Electronic Dimming
Programmed Start
|
INPUT VOLTAGE
120-277V
@120 / @277 Variants
|
DIMMING RANGE
100%-3%
1% for T5/HO
|
COMPATIBLE LAMPS
CFQ/CFTR 13-42W
1-2 Lamp, G24Q/GX24Q
|
WARRANTY
5-Year
ISO 9001 Manufactured
|
Technical Specifications
| Model / Part Number | IDL-2S26-M5-BS (available as @120 or @277 input version) |
| Brand Name | ROVR (Philips Advance) |
| Manufacturer | Philips Lighting Electronic N.A. |
| Ballast Type | Electronic Dimming |
| Starting Method | Programmed Start |
| Lamp Connection | Series |
| Input Voltage | 120-277V (120V and 277V dedicated-input versions available) |
| Input Frequency | 50/60 Hz |
| Status | Active |
| Minimum Starting Temperature | 50°F (10°C) for primary lamp |
| Power Factor | > 0.98 at full light output; > 0.90 throughout dimming range (primary lamp) |
| Total Harmonic Distortion (THD) | < 10% at nominal line voltage with primary lamp |
| Lamp Current Crest Factor | 1.7 max (measured 1.6 across all listed lamp types) |
| Sound Rating | Class A |
| Ballast Factor Range | 1.00 (max light output) to 0.03 (min light output) for primary lamp |
| Relative Light Output Range | 100% - 3% for T8 and CFL lamps; 100% - 1% for T5/HO lamps |
| EOL Protection | Lamp End-of-Life Protection Circuit for T5, T5/HO, and CFL lamps |
| Control Compatibility | Compatible DALI protocol control |
| Enclosure Construction | Plastic/metal can or all-metal can (meets plenum requirements) |
| Enclosure Dimensions | Overall Length 4.98" x Width 3.00" x Height 1.18"; Mounting 2.00" |
| Wiring | Poke-in wire trap connectors or integral leads, color coded per ANSI C82.11 |
| Certifications | UL Listed (Class P, Type 1 Outdoor); CSA certified where applicable; ANSI C62.41 Category A transient protection; ANSI C82.11; FCC Title 47 CFR Part 18 Non-Consumer (Class A) EMI/RFI; NEMA 410 in-rush current limits |
| Contains PCB | No |
| Warranty | 5-year limited warranty from date of manufacture (defects in material/workmanship, max case temperature 70°C) |
| Manufacturer History | 20+ years producing electronic ballasts for the North American market |
| Quality System | Manufactured in an ISO 9001 certified factory |
| CFQ13W/G24Q x1 lamp — Input Current / Input Power / BEF | 120V: 0.15A, 06-18W | 277V: 0.07A, 06-18W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 5.56 |
| CFQ13W/G24Q x2 lamps — Input Current / Input Power / BEF | 120V: 0.28A, 19-33W | 277V: 0.12A, 19-33W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 3.03 |
| CFQ18W/G24Q x1 lamp — Input Current / Input Power / BEF | 120V: 0.19A, 07-23W | 277V: 0.09A, 07-23W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 4.35 |
| CFQ18W/G24Q x2 lamps — Input Current / Input Power / BEF | 120V: 0.34A, 11-41W | 277V: 0.15A, 11-41W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 2.44 |
| CFQ26W/G24Q x1 lamp — Input Current / Input Power / BEF | 120V: 0.25A, 08-30W | 277V: 0.11A, 08-30W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 3.33 (reference lamp for the @277 wiring diagram) |
| CFQ26W/G24Q x2 lamps — Input Current / Input Power / BEF | 120V: 0.46A, 13-55W | 277V: 0.20A, 13-55W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 1.82 (reference lamp for the @120 wiring diagram) |
| CFTR13W/GX24Q x1 lamp — Input Current / Input Power / BEF | 120V: 0.15A, 06-18W | 277V: 0.07A, 06-18W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 5.56 |
| CFTR13W/GX24Q x2 lamps — Input Current / Input Power / BEF | 120V: 0.28A, 19-33W | 277V: 0.12A, 19-33W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 3.03 |
| CFTR18W/GX24Q x1 lamp — Input Current / Input Power / BEF | 120V: 0.19A, 07-23W | 277V: 0.09A, 07-23W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 4.35 |
| CFTR18W/GX24Q x2 lamps — Input Current / Input Power / BEF | 120V: 0.34A, 11-41W | 277V: 0.15A, 11-41W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 2.44 |
| CFTR26W/GX24Q x1 lamp — Input Current / Input Power / BEF | 120V: 0.25A, 08-30W | 277V: 0.11A, 08-30W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 3.33 |
| CFTR26W/GX24Q x2 lamps — Input Current / Input Power / BEF | 120V: 0.46A, 13-55W | 277V: 0.20A, 13-55W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 1.82 |
| CFTR32W/GX24Q x1 lamp — Input Current / Input Power / BEF | 120V: 0.30A, 09-36W | 277V: 0.13A, 09-36W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 2.78 |
| CFTR42W/GX24Q x1 lamp — Input Current / Input Power / BEF | 120V: 0.39A, 07-47W | 277V: 0.17A, 09-47W | Ballast Factor 0.03-1.00, Crest Factor 1.6, BEF 2.13 |
Product Overview
The ROVR IDL-2S26-M5-BS is a Philips Advance electronic dimming ballast built for Programmed Start operation, wired in series for 1 or 2 compatible CFL lamps. It operates from a 50/60Hz source and is available in dedicated 120V (IDL-2S26-M5-BS@120) and 277V (IDL-2S26-M5-BS@277) input versions — confirm which one matches your circuit before ordering. It's high-frequency electronic, operating above 42kHz to avoid infrared interference and eliminate visible flicker.
This ballast dims compatible lamps from 100% down to 3% relative light output (1% for T5/HO lamps), holds Power Factor above 0.98 at full output and above 0.90 throughout the dimming range, and keeps input current THD under 10% — all at a Class A sound rating. It's DALI protocol control compatible and carries a Lamp End-of-Life Protection Circuit for T5, T5/HO, and CFL lamps.
Compatible Applications
- CFQ13W/G24Q, CFQ18W/G24Q, CFQ26W/G24Q — 1 or 2 lamps in series.
- CFTR13W/GX24Q, CFTR18W/GX24Q, CFTR26W/GX24Q — 1 or 2 lamps in series.
- CFTR32W/GX24Q and CFTR42W/GX24Q — 1 lamp.
- Standard electromagnetic or electronic ballast retrofit applications (physically interchangeable, where applicable).
Before Ordering – Verify
- Confirm your circuit voltage and order the matching input version — IDL-2S26-M5-BS@120 for 120V or IDL-2S26-M5-BS@277 for 277V.
- Confirm your lamp type, wattage, and lamp count (1 or 2) match one of the compatible configurations listed above — input current and power draw vary by configuration.
- Confirm your dimming control system is DALI-protocol compatible.
- Verify enclosure dimensions (4.98" L x 3.00" W x 1.18" H, 2.00" mounting) clear your fixture.
- This ballast has a minimum starting temperature of 50°F (10°C) — confirm this meets your installation environment.
Safety and Handling Guidelines
- Disconnect power before installing or servicing.
- Do not connect low-voltage control leads directly to mains power — the ballast includes protection circuitry but will default to maximum light output if this occurs.
- Install only with lamp types and counts listed as compatible for this ballast.
- Rated for a maximum case temperature of 70°C — ensure adequate fixture ventilation.
- Contains no Polychlorinated Biphenyls (PCB).
Compliance
- Manufactured by Philips Lighting Electronic N.A. (ROVR / Philips Advance).
- UL Listed, Class P, Type 1 Outdoor; CSA certified where applicable.
- Complies with ANSI C62.41 Category A (transient protection) and ANSI C82.11.
- Complies with FCC Title 47 CFR Part 18, Non-Consumer (Class A) for EMI/RFI (conducted and radiated).
- Complies with NEMA 410 for in-rush current limits.
- Manufactured in an ISO 9001 certified factory.
- 5-year limited warranty from date of manufacture.
Ordering Information
- Part Number: IDL-2S26-M5-BS@120 (120V input)
- Part Number: IDL-2S26-M5-BS@277 (277V input)
- Brand: ROVR (Philips Advance)
- Confirm lamp type/count configuration against the compatibility table before ordering.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
