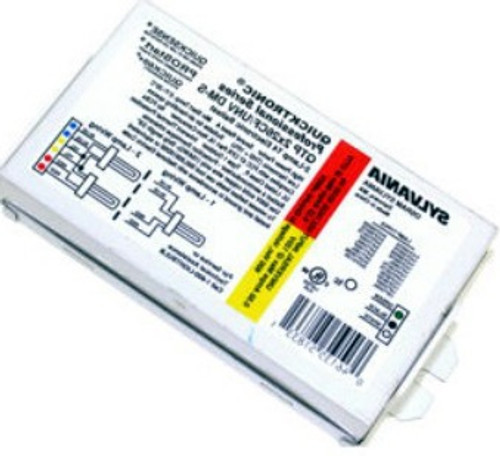

Sylvania 51833 QTP2x26CF/UNV DM

(No reviews yet) Write a Review
$14.83
SKU:
SKE5183-03
UPC:
046135518331
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Product Overview


Sylvania Lighting MPN #51833 Professional Series Quicktronic Prostart QTP2X26CFUNV-DM  Programmed Start Electronic Compact Fluorescent Ballast

Operates the Following Fluorescent Lamps:

  • (1 or 2) CFQ26W/G24q (Philips PL-C26W/4P, GE F26BDX/4P, Sylvania CF26DD/E)
  • (1 or 2) CFTR26W/GX24q (Philips PL-T 26W/4P, GE F26TBX/4P, Sylvania CF26DT/E)
  • (1-2) FT24W/2G11 (Philips PL-L 24W/4P, Osram Dulux L 24W, Sylvania FT24DL)
  • (1-2) FT18W/2G11 (Philips PL-L 18W/4P, Osram Dulux L 18W, Sylvania FT18DL)
  • (1-2) FT24W/2G11 (Osram Dulux F 24W, Sylvania FT24DF)
  • (1) CFTR32W/GX24q (Philips PL-T 32W/4P, GE F32TBX/4P, Sylvania CF32DT/E)
  • (1) CFTR42W/GX24q (Philips PL-T 42W/4P, GE F42TBX/4P, Sylvania CF42DT/E)
  • (1) CFS28W/GR10q, GE F282D/4P, Osram CFL Square 28W 4P
  • (1) CFS38W/GR10q, GE F382D/4P, Osram CFL Square 38W 4P
  • (1-2) FPC22/T5 (FC9T5 22W) Or (1) FPC40/T5 (FC12T5 40W)
  • Dual Entry (Bottom & Side Color Coded Entry Connectors)
  • Doesn't Include Ballast Kit *Mounting Plate,Wire,Tools*
  • Sylvania #51852 QTP 2x26CF/UNV-KIT Includes Ballast Kit
  • Spec Sheet



QTP2X26CF-UNV-DM Replaces the Following Ballasts:

  • Sylvania 51793 QTP 2x26CF/UNV QS
  • Sylvania 51733 QTP 2x26CF/UNV BS
  • Sylvania 51763 QTP 2x26CF/UNV TS
  • Sylvania 51738 QTP 1/2xCF/UNV BM
  • Sylvania 51768 QTP 1/2xCF/UNV TM



Additional Information:

  • Remote Mounting up to 15 feet for one lamp and up to 6 feet for two lamps
  • Normal Power Factor > 98%
  • Starting Method Programmed Rapid Start
  • UL Listed Class P, Type 1 Outdoor
  • Ground ballast case
  • Install in accordance with National Electric Codes
  • Complies with FCC 47 CFR Part 18, Non-Consumer
  • ANSI 62.41 Cat. A Transient Protection
  • Class A Sound Rating.
  • Voltage Range: ±10% of 120-277V Rated line (108-305V)
  • Minimum Starting Temperature: -4F/-20C.
  • CSA certified. ANSI C82.11 where applicable. N
  • No PCB (Polychlorinated Biphenyl)
  • 75°C Max. Case Temp./80°C Max Case Temp.

Cross Reference:

  • Adance Philips ICF-2S26-H1-LD
  • GE GEC226-MVPS
  • Triad C2642UNVME
  • Robertson PSM226CQMVW
  • ESI ES-2/1-CFQ-26/10-UNV-C
  • Hatch HC226PS/UV/D
  • Keystone KTEB-226-UV-TP-PSD
